item |
parameter |
item |
parameter |
|
Working width（mm） |
660±2 |
Blower air flow (m3/h) |
1000～1500 |
|
Capacity (kg/h) |
Cotton50-70; synthetic fibre 45-60 |
Input speed(m/s) |
0.01 |
|
Installation power（kw） |
4.74 |
Balancing roller dia（mm） |
φ76 |
|
Actual consumption （kw） |
＜3.5 |
Balancing roller speed (rpm) |
4.31 |
| Opening percentage |
＞95% |
Top stripping roller dia（mm） |
φ120 |
|
Cylinder dia（mm） |
φ750 |
Top stripping roller speed(rpm) |
9.39 |
| Cylinder speed(rpm) |
608 |
Bottom stripping roller dia（mm） |
φ80 |
|
Dust cage dia（mm） |
φ400 |
Bottom stripping roller speed (rpm) |
14.08 |
|
Dust cage speed(rpm) |
2.68 |
Noise (db) |
＜80 |
|
Blower speed(rpm) |
1080 |
Overall size mm(L×W×H)2805×1145×1370 |
|

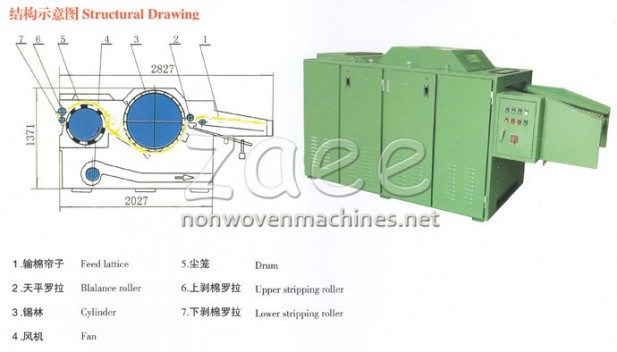

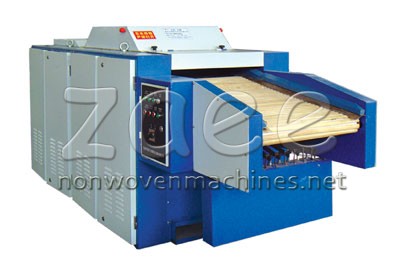

ZAEE-201B Model Roving Waste Opener
Applications:
This machine is mainly used to open roving waste and roller laps produced during spinning into fibres loose enough to be recovered Suitable for raw cotton chemical fibre,ramie,etc.
Features:
Good in sealing,bright in appearance,comfortable in structure,safe in operation and convenient in maintenance.
